3 Phase Prepaid Electronic Energy Meter , Four Wire KWH Meter Digital 3 Phase

Ask Lasest Price
Brand Name :	TYNEHAM
Model Number :	DTSY - 2D
Price :	Negotiate
Supply Ability :	30000 PCS Per Month

Add to Cart

Product Details
Company Profile

3 Phase Prepaid Electronic Energy Meter , Four Wire KWH Meter Digital 3 Phase

3 Phase Prepaid Electricity Meters Three Phase Four Wire Power meter LED Display Electronic Prepaid Meter

PRODUCT INFORMATION

Model DDSY/DTSY-2 Single/three phase electronic prepayment active energy meter is a kind of active energy meter which purchase electricity by IC card Prepaid Electronic Energy Meter also called quantitative meter, IC card prepaid meter, in addition to the ordinary energy meter measurement functions, especially the user need to buy electricity FIRST, USE second, after run out of power if the user does not continue to buy electricity, the meter will automatically cut off, this meter is best way to solve payment collection problem, Prepaid Electronic Energy Meter also has function of anti-tampering, over load protection, management of energy consumption and user information.

SPECIFICATIONS

Prepaid Electronic Energy Meter

Specification		DDSY-2	DTSY-2
Accuracy	Active	Class1.0	Class1.0
Accuracy	Reactive		Optional
Voltage	Rated	110/120/220/230/240V	3x57.7/100V,3x220/380V
	Rated	110/120/220/230/240V	3x230/400V,3x240/415V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A	3x1.5(6), 3x 5(30), 3x 10(50),
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A	3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	1600imp/kWh	400imp/kWh
Constant	Reactive
Display	Type	LCD	Register
Display	Digit	6+1	6+1
Power Consumption	Voltage Circuit	≤0.8W,10VA	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤90%	≤90%
Protection		IP54	IP54

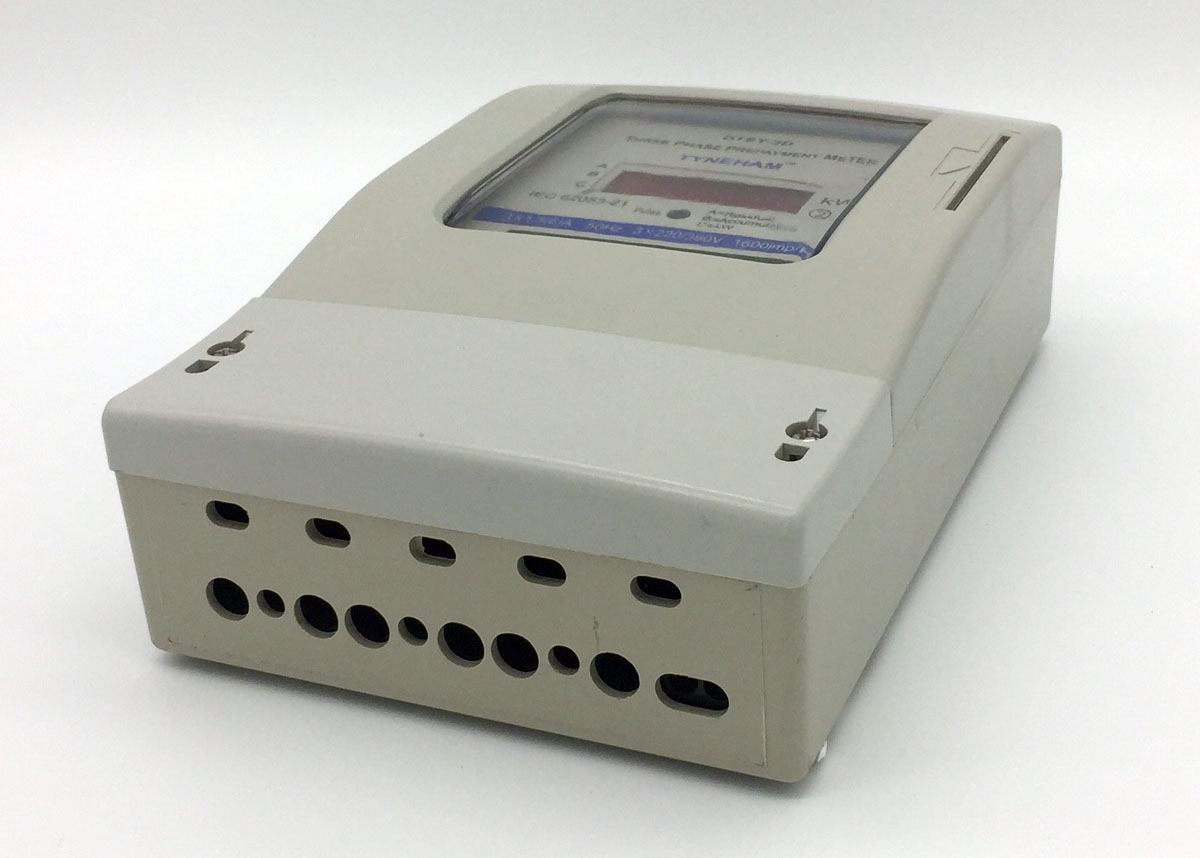

APPEARANCE

Packaging & Delivery

Packaging Details Export Carton with Inner Foam Box

Port China Port

Lead Time :7~15DAYS
