DTS - 4L 3 Phase KWH Meter DIN Rail Electronic Energy Meter Mini Type 7P

PRODUCT INFORMATION

DTS-4L Series three phase electronic four wire electronic energy meter is a new type of active energy meter, which adopts microelectronics technology and specialized large-scale integrated circuit . It uses the data sampling and SMT technology and it is in a very small volume. It has the characteristics of good reliability, small size, light weight, beautiful appearance, and easy installation.

Function and Features

-35mm DIN standard rail mounting in accordance with DIN EN 50022.
-10 pole width (modulus 12.5mm) in accordance with JB/T7121-1993
-Standard configuration 5+1 bit (99999.1kWh) stepper motor pulse register display, selectable 6+1 /5+2bit (999999.1kWh) LCD display.
-Passive energy pulse output (with polarity) is standard, and passive remote energy pulse output (non-polarity) can be selected to facilitate connection with various AMR systems. In accordance withIEC 62053-31 and DIN 43864 standards.
-The bi-color LED indicates the power status (green) and the energy pulse signal (red).
-Automatically detect the direction of the load current flow and indicate (only the red energy pulse signal at work, the current flow in the opposite direction when there is no green power status indication).
-Measurement of 3 phase 4 wire active energy consumption in one directions by three elements, independent of load current flow direction, in accordance with IEC 62053-21.
-For direct access use, there are two wiring options to choose from. The standard configuration is S-type wiring. You can choose U-type wiring (product configuration code US).
-Extended terminal cover to protect the safety of using electricity.

SPECIFICATIONS

Working condition

1. The installation altitude less than 2000m
2. The surrounding temperature range: from -5~40 degree
3. In the non-explosive condition. or without adequate erosion and destruction of gas and dust conductive area
4. Without rain and snow invade
5. Pollution level 2.

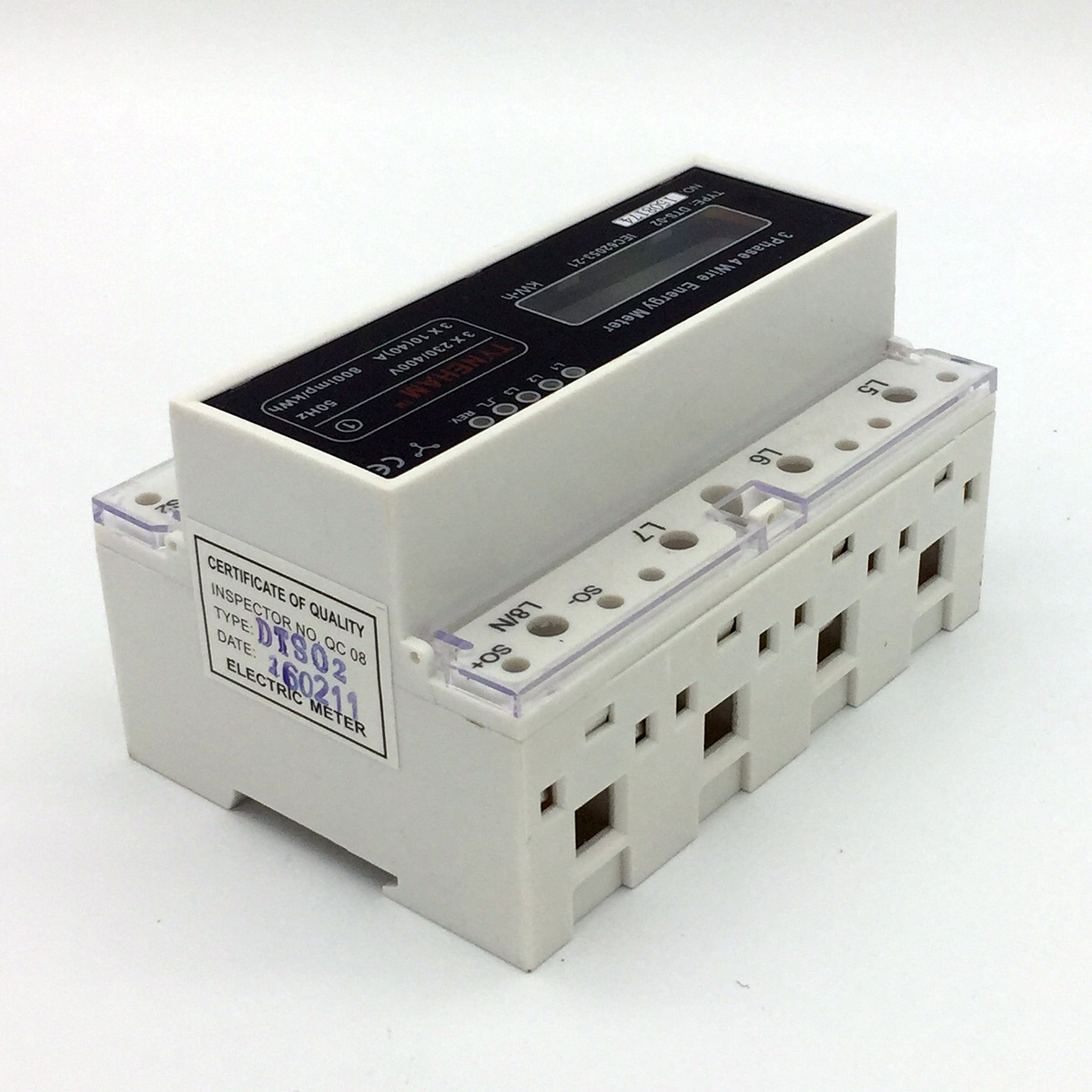

APPEARANCE
