Single Phase Two Wire Single Phase KWH Meter Digital Power Meter Counter Type Power Meter

Ask Lasest Price
Brand Name :	TYNEHAM
Model Number :	DDS - 4R
Price :	Negotiate
Supply Ability :	50000 pieces per month
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

Single Phase Two Wire Single Phase KWH Meter Digital Power Meter Counter Type Power Meter

Single Phase Two Wire Single Phase KWH Meter Digital Power Meter Counter Type Power Meter

PRODUCT INFORMATION

This single phase electronic watt hour meter is intended for electric energy measurement and registration in single phase two-wire network in the household.

It adopts LSI(large scare integrated circuit), micro-electronics technique and SM (surface mount technology) etc.
Its performance complies with IEC62053-21, IEC 62052-11.

SPECIFICATIONS

Specification		DDS-4L	DDS-4R
Accuracy	Active	Class1.0	Class1.0
Accuracy	Reactive
Voltage	Rated	110/120/220/230/240V	110/120/220/230/240V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	2000imp/kWh	2000imp/kWh
Constant	Reactive
Display	Type	LCD	Register
Display	Digit	6+1/6+2	5+1
Power Consumption	Voltage Circuit	≤0.8W,10VA	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤90%	≤90%
Protection		IP54	IP54

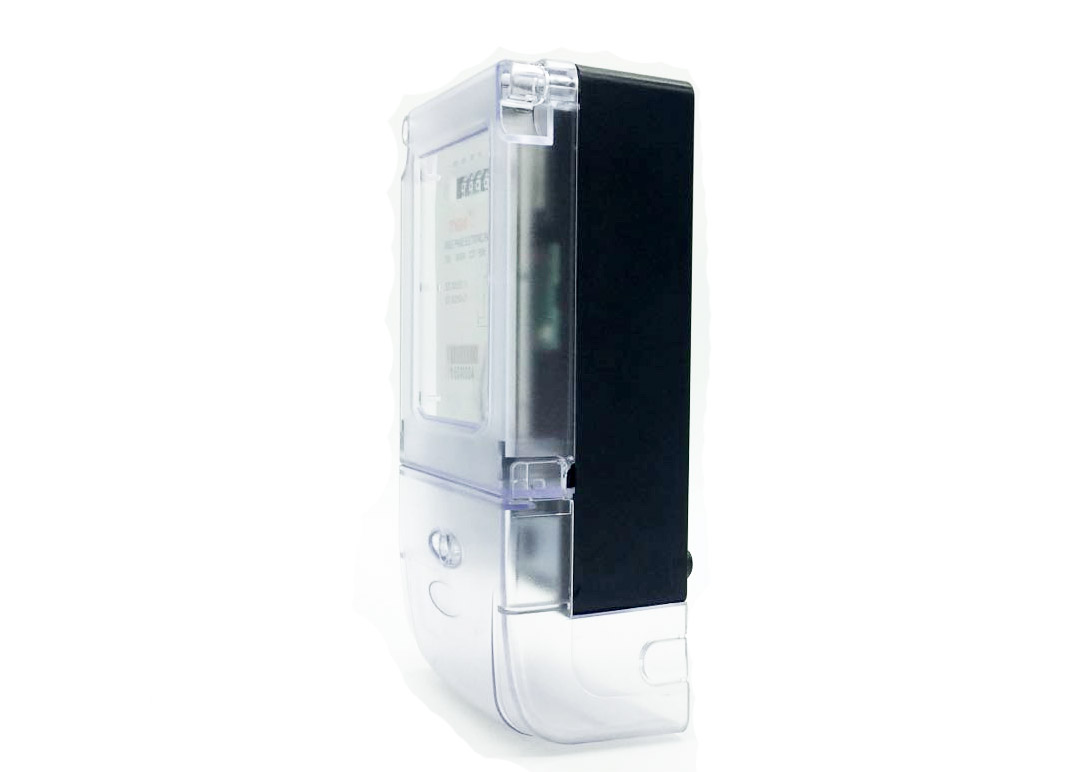

APPEARANCE

Packaging & Delivery

Pckaging Details

One piece with pc bag in a foam box and ten boxes in a carton

Port: Shanghai/Ningbo

Lead Time :about 7 days
