    High Accuracy Mechanical Electricity Meter / Four Wire Three Phase KWH Meter

    Ask Lasest Price
    Brand Name : TYNEHAM
    Model Number : DT862
    Price : Negotiate
    Supply Ability : 50000 PCS / Month
    • Product Details
    • Company Profile

    High Accuracy Mechanical Electricity Meter / Four Wire Three Phase KWH Meter

    Good Quality​ Three Phase Four Wire Counter Display Electromechanical KWH Meter Black Cover


    PRODUCT INFORMATION
    DT862 three phase electromechanical front board installed active energy meter is a kind of new style three phase four wire active energy meter,
    Mechanical Electricity Meter is on the basis of original single phase electromechanical meter,and fully absord new technologies about electromechanical meter from domestic and abroad,the meter completely accord with relevant technical requirement of class 2 single phase active energy meter stipulated in international standard IEC62053-11,Mechanical Electricity Meter can actually and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net,Mechanical Electricity Meter is use for setting indoor or out door meter box,and it can display total energy consumption by drum wheel mechanical counter.It has following features:High overload,power loss,long-life,specious appearance,etc.


    Function and features

    • Sub-closed iron core;
    • The die-casting frame is made of alloy aluminum,to assure the magnetic line stanbly and reliably;
    • Meter bearing has three kinds,may select dual jewel,magnetic thrust or magnetic float;
    • May select 5+1 digits or 6 digits register;


    SPECIFICATIONS

    Technical parameters
    ModelAccuracy

    Reference

    voltage (V)

    Current

    specifications (A)

    Starting

    current (A)

    Insulation

    performance

    DT862Class 2

    3×127/220

    3×230/400

    CT/5

    10(40)

    20(80)

    30(100)

    0.015

    0.05

    0.1

    0.15

    AC voltage 2kV for 1 minute, 1.2/50us

    waveform impulse voltage 6kV.

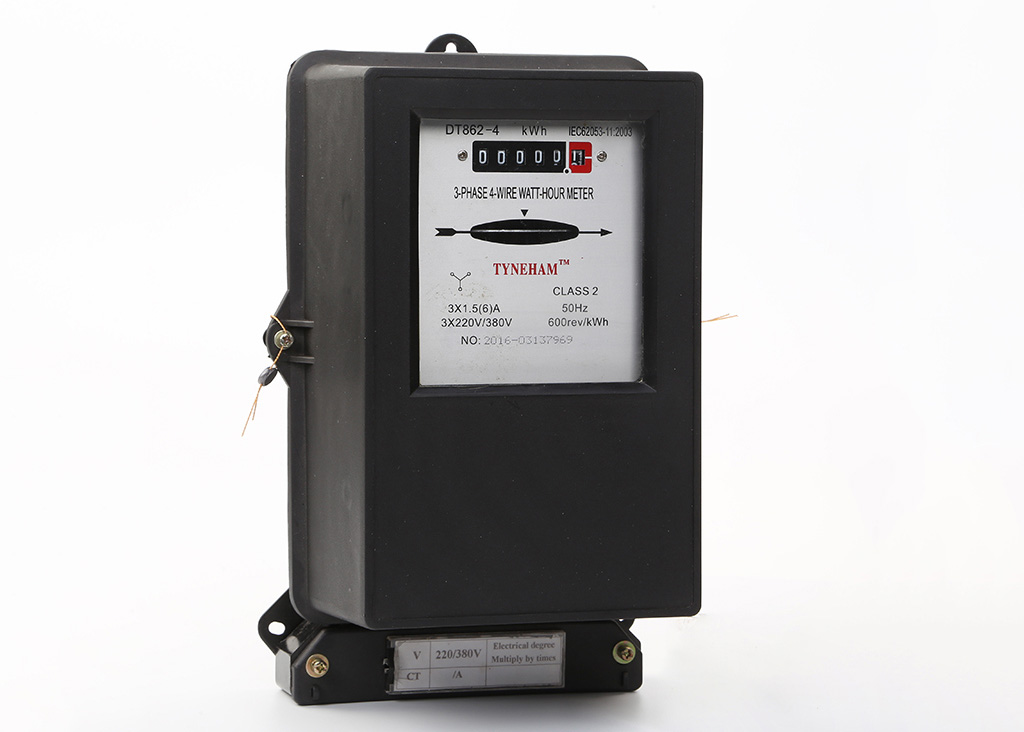

    PRODUCT PICTURE
