    High Accuracy Three Phase Energy Meter / 3 Phase Mechanical Kwh Meter

    Ask Lasest Price
    Brand Name : TYNEHAM
    Model Number : DT862
    Price : Negotiate
    Supply Ability : 50000 PCS / Month
    • Product Details
    • Company Profile

    High Accuracy Three Phase Energy Meter / 3 Phase Mechanical Kwh Meter

    DT862 3 phase 4 wire electromechanical kwhmeter Transparent Cover kilowatt-hour meter


    PRODUCT INFORMATION


    DT862 three phase electromechanical front board installed active energy meter is a kind of new style three phase four wire active energy meter,it is on the basis of original single phase electromechanical meter,and fully absord new technologies about electromechanical meter from domestic and abroad,the meter completely accord with relevant technical requirement of class 2 single phase active energy meter stipulated in international standard IEC62053-11,3 Phase Mechanical Kwh Meter can actually and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net,3 Phase Mechanical Kwh Meter is use for setting indoor or out door meter box,and it can display total energy consumption by drum wheel mechanical counter.It has following features:High overload,power loss,long-life,specious appearance,etc.



    SPECIFICATIONS

    1Meter typeDT862 3 Phase Mechanical Kwh Meter
    2StandardsIEC60521 ,IEC514

    3

    Accuracy

    (according to IEC60521)

    Transformer operated: Class 1

    Direct connected: Class 2

    4Average service life (MTTF)10 years
    5Basic current(Ib) A1.535510152030
    6Maximum current(Imax) A66102040606010080100100
    7Rating current of transformer In5ADirect connection
    8Meter constant r/kWh600450200200100605030
    9Over load capacity %Ib400200400500400400667400500333

    10

    Rated load speed (r/min)

    at unity PF, 3×220/380V, Ib


    9.9


    14.9


    11


    9.9


    11


    9.9

    11Reference voltage Un3×57.7/100V, 3×220/380V, 3×230/400V, 3×240/415V
    12Reference frequency fn50 Hz,60 Hz

    13

    Power losses

    in voltage circuit at 50 Hz Un


    1.0 W/4.5 VA


    14

    Power losses in

    current circuit at 50Hz Un Ib


    <0.5 VA

    15Non-running with no-load0.8~1.1Un
    16Staring current0.4%Ib0.5%Ib

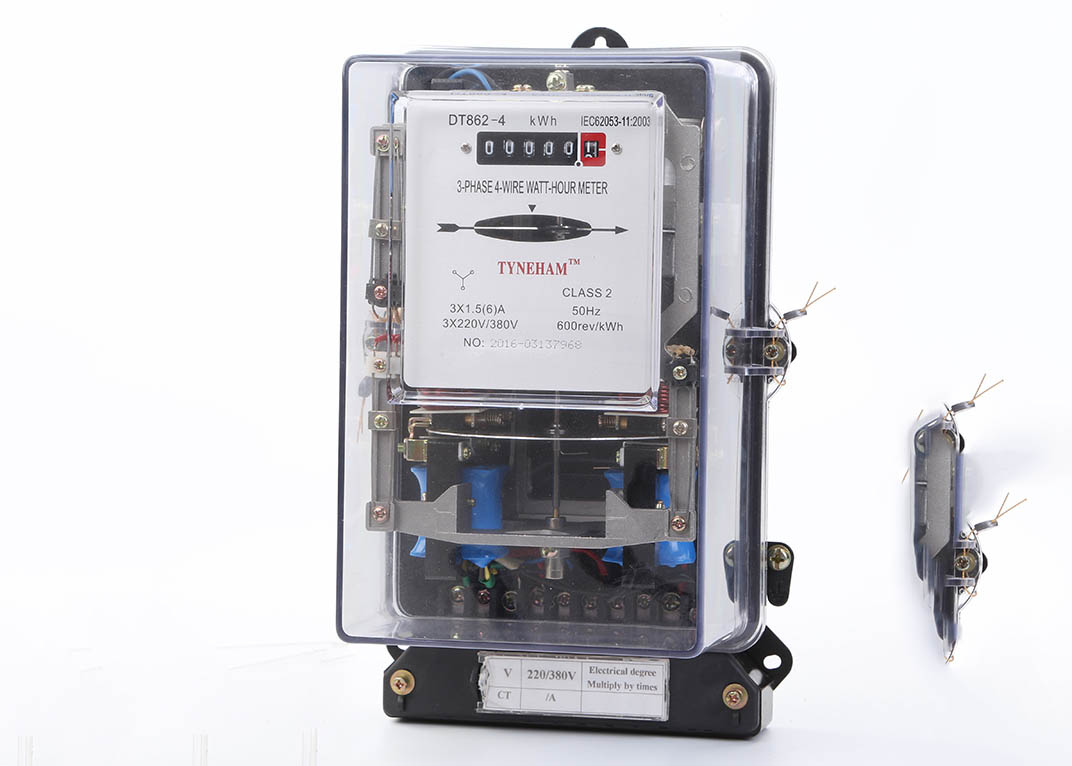

    PRODUCT PICTURE
