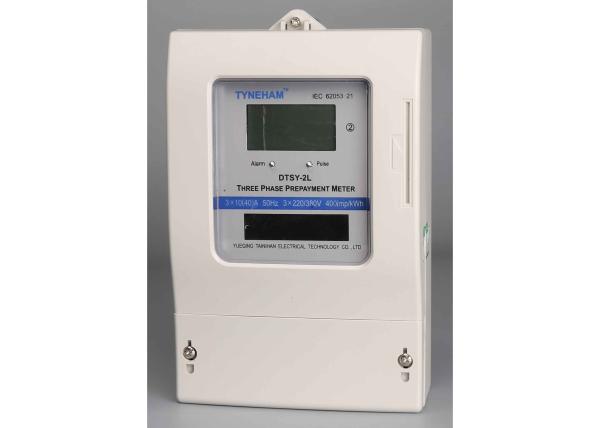

Three Phase KWH Meter LCD Display Three Phase Four Wire Prepaid Watt-hour Meter​

PRODUCT INFORMATION

DTSY - 2L Three Phase Four Wire KWH Meter is a kind of active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. Prepaid Watt-hour Meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. Prepaid Watt-hour Meter can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is used for installed in meter box indoor or outdoor. This meter has LED monitors shows power. It has following features: Good reliability, light weight, specious nice appearance, convenient installation, etc.

SPECIFICATIONS

TECHNICAL PARAMETERS

Accuracy class:Class 1.0,

Rated voltage(V):3 x 57.7/100, 3 x 220/380, 3 x 230/400, 3x240/415.etc.

Rated current(A):1.5(6), 3(6), 5(20), 10(40), 15(60), 20(80), 30(100),etc.

Rated frequency:50Hz or 60Hz

Operation voltage range:Un±20%

Insulation capabilities: AC voltage withstand 2kV for 1 minute;

Impulse voltage withstand: 6kV-1.2/50 μs waveform

Starting current Input through CT: 0.2%Ib; Directly input: 0.4%Ib

Power consumption Voltage circuit ≤1W 5VA; Current circuit ≤0.5VA

Max.operation temperature:-40°C ~ +80°C

Max.storage temperature:-45°C ~ +85°C

Relative Humidity:≤85%

Relative Humidity:≤85%

Dimension:1 228 x 144 x 72 mm

Weight:Approx 1.5kgs

APPEARANCE

Yueqing Tainihan Electrical Technology Co., Ltd is located in Xiangyang industrial zone, liushi town, Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.

The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Tainihan keeps perfecting existing products and developing new product lines. We have deceloped a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. Our products has attained CE certification with superior quality are popular in the global market.

Our company posses high accuracy special divice, advance technology, laborious workmamship and various styles. We also have rights for import and eport, our products are widely sold well to southeast Asia, Middle East, South America and other areas.

We believe that our company will be more powerful and far better by your support!
