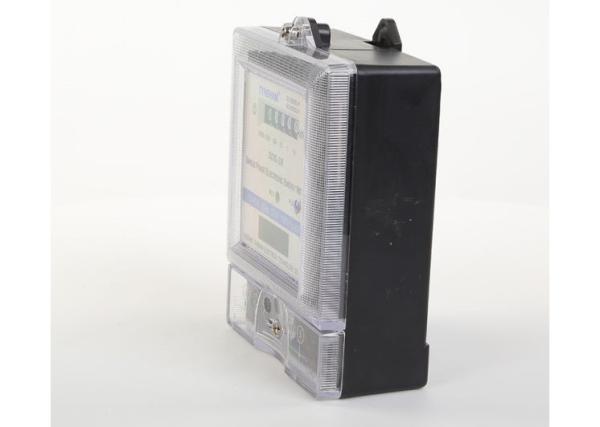

Single Phase Two Wire Digital KWH Meter Clear Cover New Type Transparent Cover New Type

Single Phase Electric Meter features excellent accuracy, reliability, stability and feasibility. It is integrated with internationally advanced ultralow power consumption LSIC, microprocessor and SMT technique. Using international brand long-life devices as its key parts increases its reliability and service life. The manufacture of the Single Phase Electric Meter complies with all technical indexes of IEC 61036:2000 Class 1 and Class 2 Static AC Active Watt-hour Meter and GB/T17215.321-2008 Class1 and Class2 Static Alternating Current Active Energy Meter for the single-phase static watt-hour meter.

phase electronic watt-hour meter (hereinafter referred to as meters) is designed to measure active electric energy in a single-phase circuit with a 50Hz/60Hz reference frequency.

1. The meter features in steady accuracy as any frequency,temperture ,voltage and upper harmonic is non-influential to it.It is much more reliable than mechanical meters.There is no need of calibration after the meter is delivered out of the factory ,which save the work for the power institutions.

2. It has bi-directional measuring function,which is able to measure positive and negative active energy accurately and the negative energy is added to positive energy.

3. The energy data can be stored eternally even without back-up battery.

4. With passive pulse output interface by optical coupier isolation.

5. The meter features in wide load ,excellent accuracy,high reliability,strong sensibility ,flat error line ,low power consumption,small size,light weight ,energy saving and material saving.The main parameter values are easily read with LCD display.

6. Reverse Tamper Light alarms,when the energy reverses.

7. When there is no external power source ,the meter will display Consumed Energy and Maximum Demand with battery back-up

Other

1. Model:DDS-2R
2. Standard:IEC521-1988
3. Function:measurement the active electric energy
4. Rated current:1.5(6)A,2.5(10)A,5(20)A,3(12)A,10(40)A,15(60)A,20(80)A,30(100)A

5. Rated voltage:400V
6. Accuracy:0.5,1,2
7. Rated frequency:50Hz/60Hz
8. Bearing:Single-jewel,dual jewel,magnetic floating
9. Case:Aluminum,plastic,glass

SPECIFICATIONS

APPEARANCE

Packaging & Delivery

Yueqing Tainihan Electrical Technology Co., Ltd is located in Xiangyang industrial zone, liushi town, Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.

The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Tainihan keeps perfecting existing products and developing new product lines. We have deceloped a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. Our products has attained CE certification with superior quality are popular in the global market.

Our company posses high accuracy special divice, advance technology, laborious workmamship and various styles. We also have rights for import and eport, our products are widely sold well to southeast Asia, Middle East, South America and other areas.

We believe that our company will be more powerful and far better by your support!
